▶General introduction

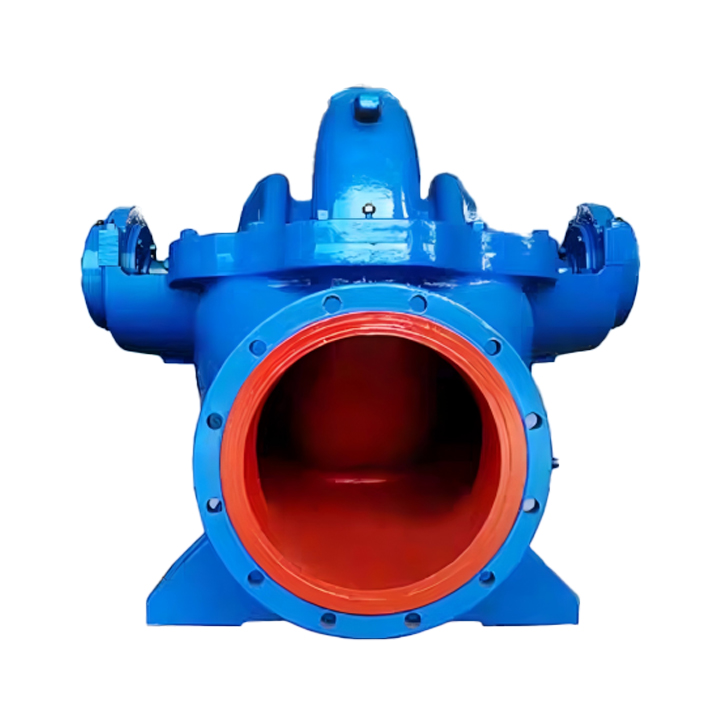

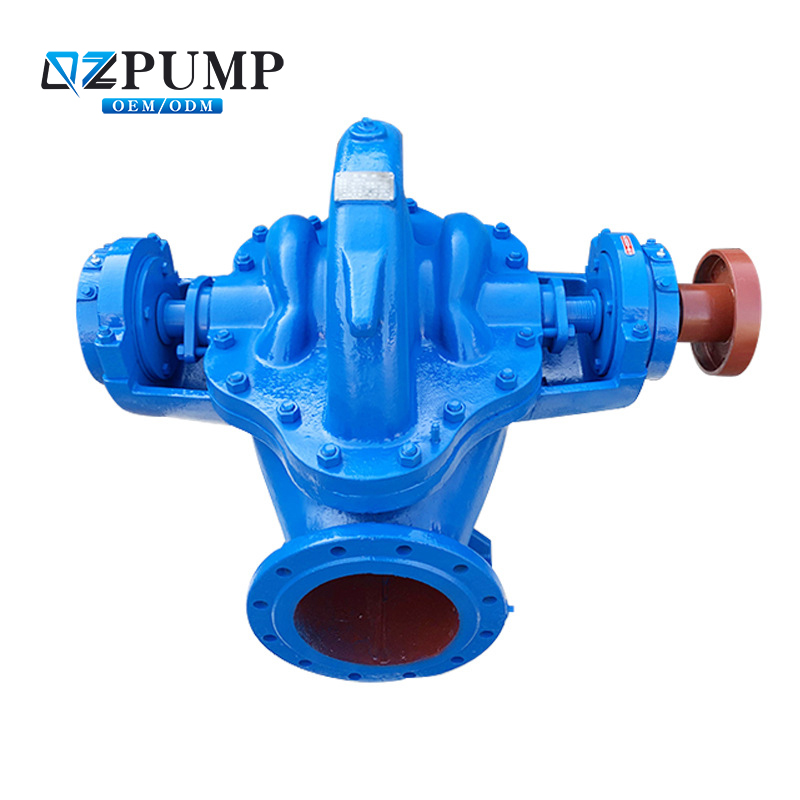

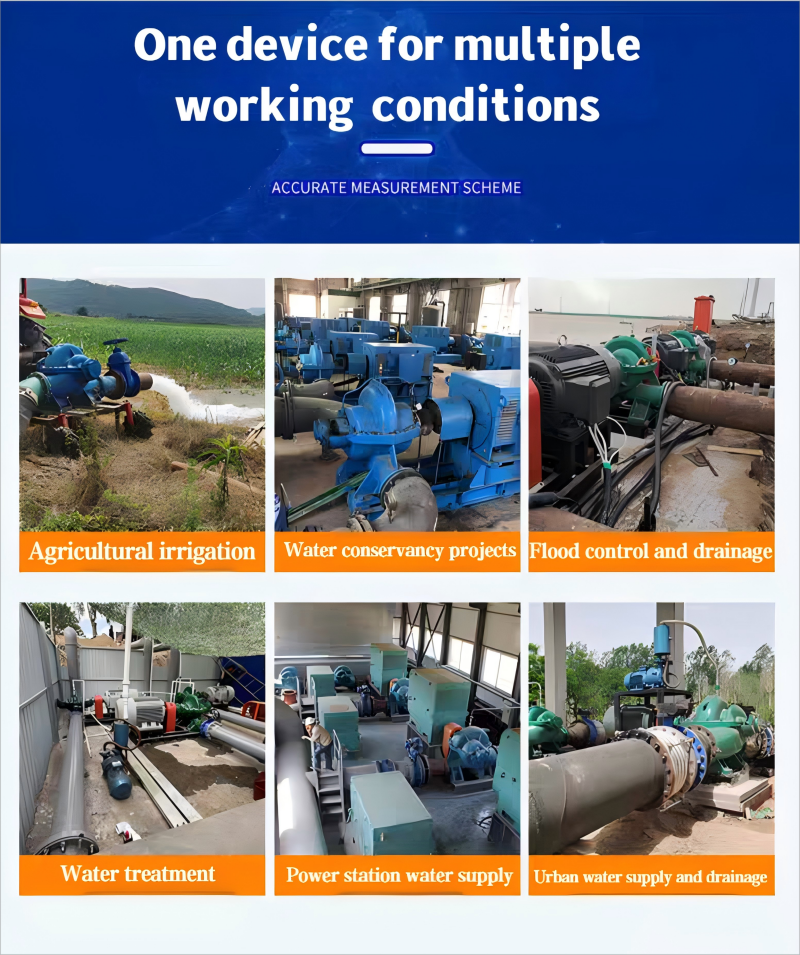

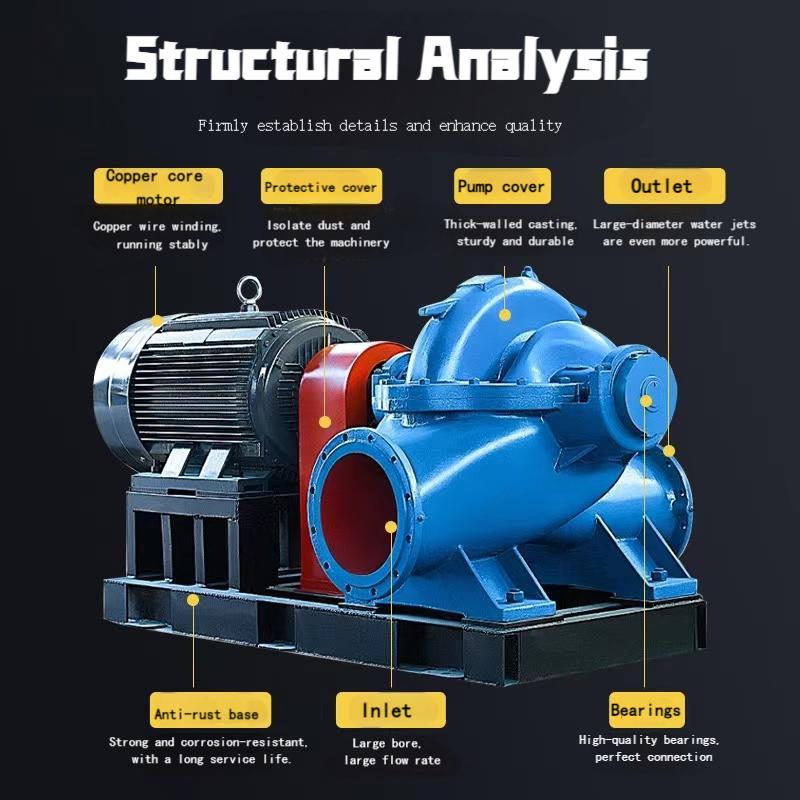

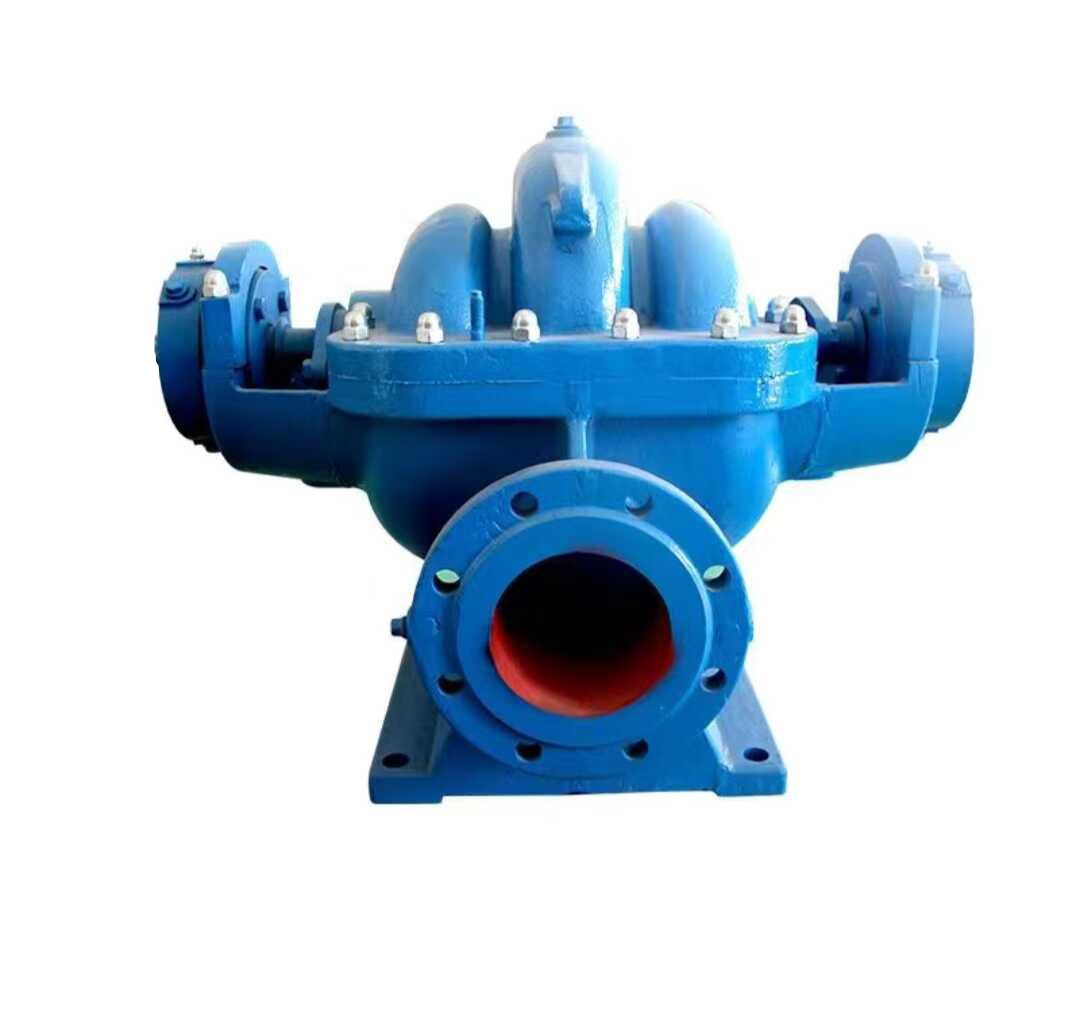

The SH type pump is a single-stage double-suction, horizontal, mid-mounted centrifugal pump. It is used for transporting clear water and liquids with physical and chemical properties similar to water. The medium temperature is 80℃. If the bearings at both ends are supplied with cooling water, the medium temperature can reach 130℃. It is suitable for water supply and drainage in factories, mines, cities, power stations, as well as irrigation and drainage in farmlands and various water conservancy projects. The materials of the impeller, sealing ring and shaft sleeve can be selected to convey muddy water containing sand. The shaft seal of the pump is generally made of soft packing. If there are special order requirements, mechanical seals can also be installed.

▶Model Significance
    The meaning of pump model: such as 10SH-13A

    10 - The diameter of the suction port is divided by 25 (that is, the diameter of the suction port of this pump is 250 millimeters)

    S, SH - Double-suction, single-stage, horizontal centrifugal clean water pump

    13 - The specific speed is divided by 10 (that is, the specific speed of this pump is 130)

    A - Indicates that the pump has been equipped with different-sized impellers.
