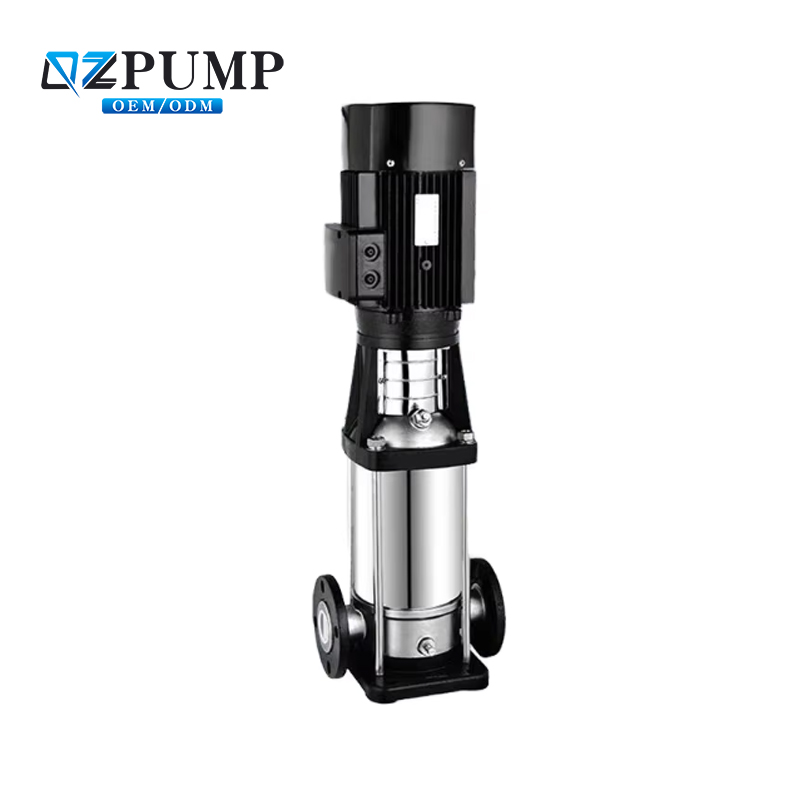

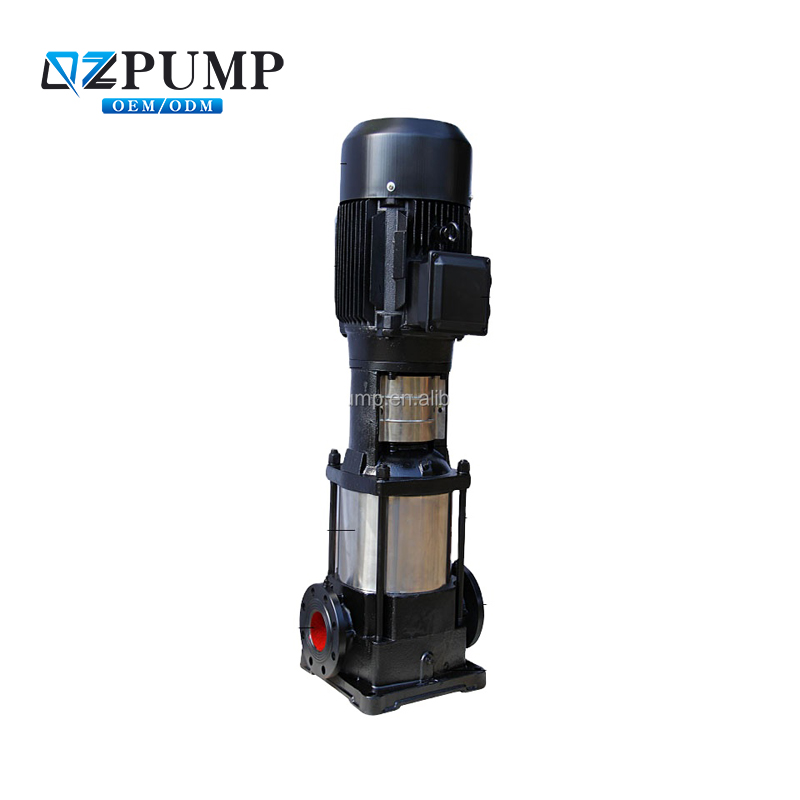

CDL Stainless Steel Vertical Multistage Centrifugal Pump Clean Water Pipeline Circulation Booster Constant Pressure Water Supply
| application | Developing World Water Solutions |
| pressure | Max 30Bar |
| warranty | 1 years |
| place of origin | Hebei, China |
| customized support | Yes |
| power source | Electric |
| structure | Multistage Pump |
| model number | CDL(F) |
| brand name | qizhuo |
| cable length | // |
| Chemical Compatibility | Water |
| motor | 0.37-15KW |
| Rotational speed | 2900r/min |
| Maximum flow | 40m³/h |
| Maximum head | Customizable |
| outlet size | Customizable |
| Sealing Material | Stainless Steel |
| Motor Enclosure | totally enclosed fan cooled |
| Power | Multiple models |

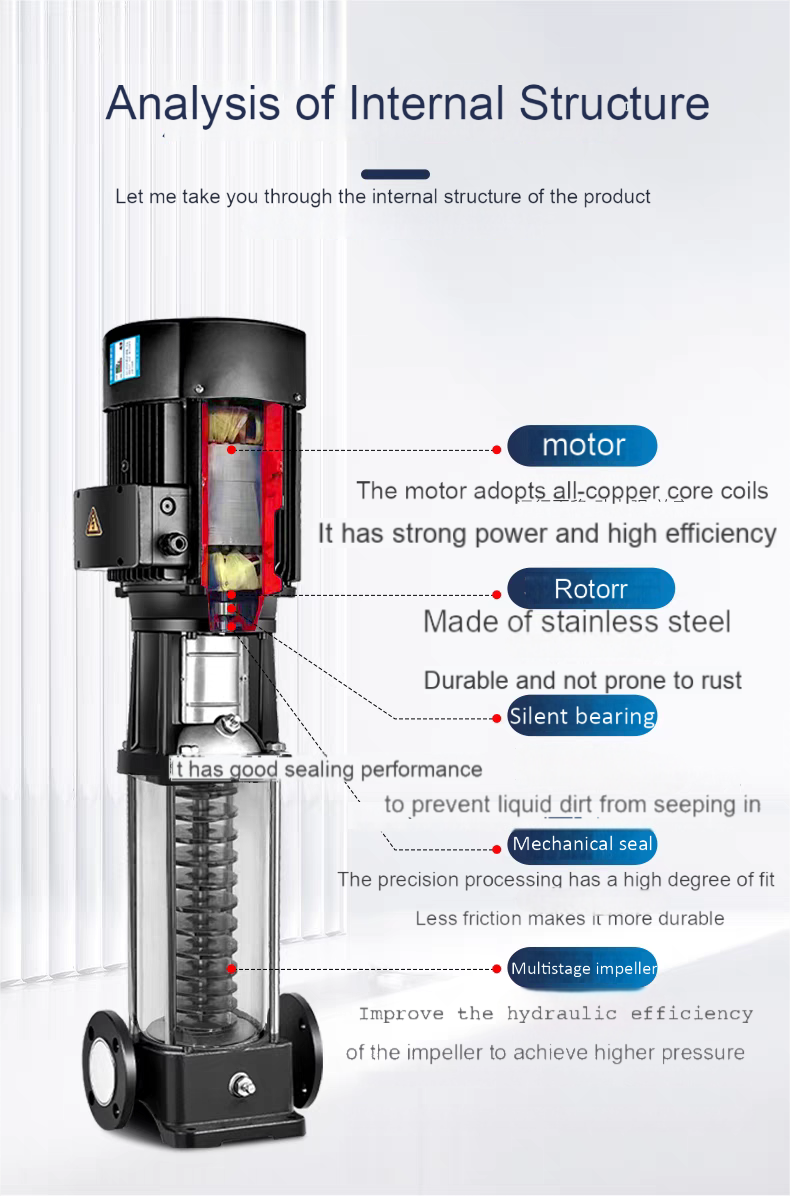

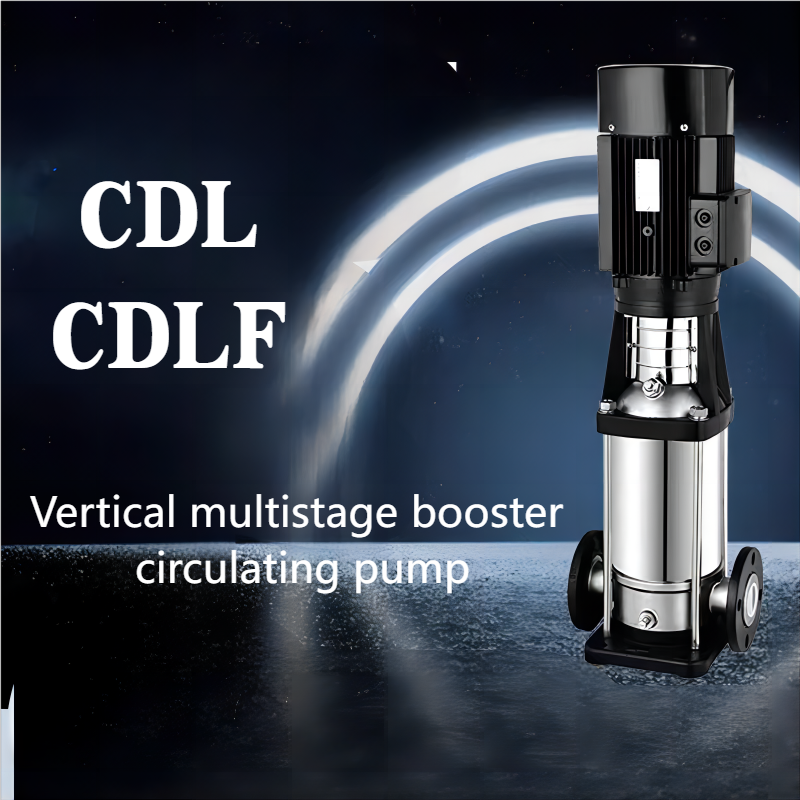

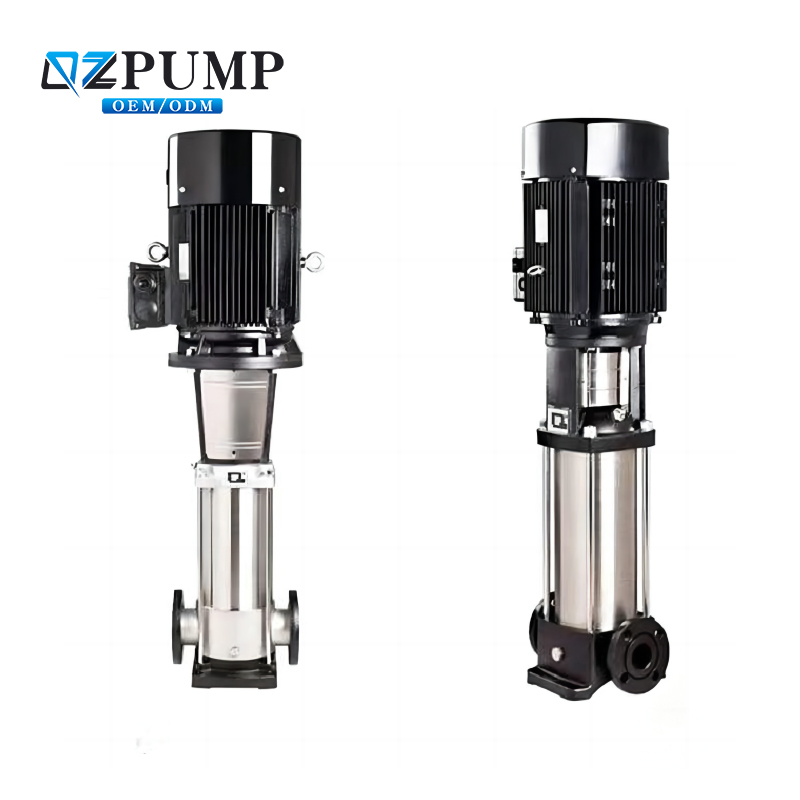

CDL(QDL) vertical multipolar and stainless steel Centrifugal Pump,manufacture dy adopting advanced denmark technology. The best advantage is the advantages of advanced water-power model design, high efficient and save power. There is vane wheel inside, the pump shell and main fittings takes with stainless steel punch, flow-road is very smooth, axle sleeve is hard metal tool, so that will be super-powerful longlasting using time, to prevent producing second pollution,and it axle cover seals with wear-resisting machine, unreveal. Electrical machine adopts Y2 lead case, import bearing, insulating grades F. Pump works smoothly, and low-noise.The quallty of this product is dependable, good appearance,small bulk,light,and easy for transport and install. It is ideal water pump of green and surrounding protection and save power.
1.Urban water supply and pressure boosting
2.Industrial circulating system and processing system
3.Water supply for boiler or condensate system
4.Environmental protection water treatment and infiltration analysis system
5.Agriculture irrigation and dewatering
6.Industrial building cleaning and orther washing work
7.(Others) many special applications
Common type is applicable for liquid conveying,circulation and boosting of hot and cold clean water,soft water;
Stainless steel type is also used for water with tiny content of alkali,mineral,distilled water,water for swimming pool and solution with chloride, but the allowed Temperature of the liquid shall bereduced.
Hot and cold clean,non-flammable,nonexplosive liquid without soild grain and fiber
Liquid temperature:ambient temperature -15℃ ~ +70℃，hotwater+70℃ ~ +120℃；
Highest environmental temperature:+40℃

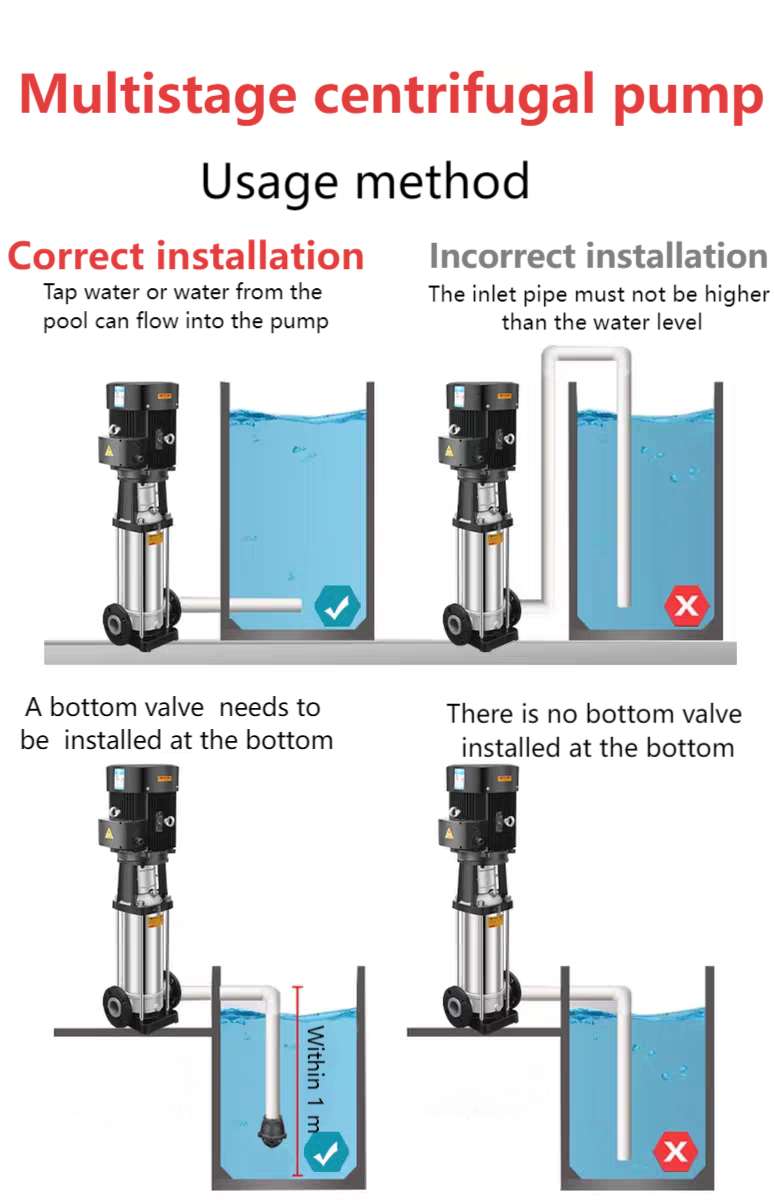

Min inlet pressure:according to NPSH curve + min safe delivery head 0.5m water head.
1、All the perfonnance curves are based on the measured values of motor 3x380,50Hz under constant speed of 2900r/min. The motor is of changeable voltage;
2、Measurement is done on the basis of:20℃ water in free air, dynamic viscosity r=1mm²/sec; tolerance refers to attachment B of ISO2584
3、The operation of pump shall refer to the scope of perfonnance of the black curve to prevent danger due to overheating.
