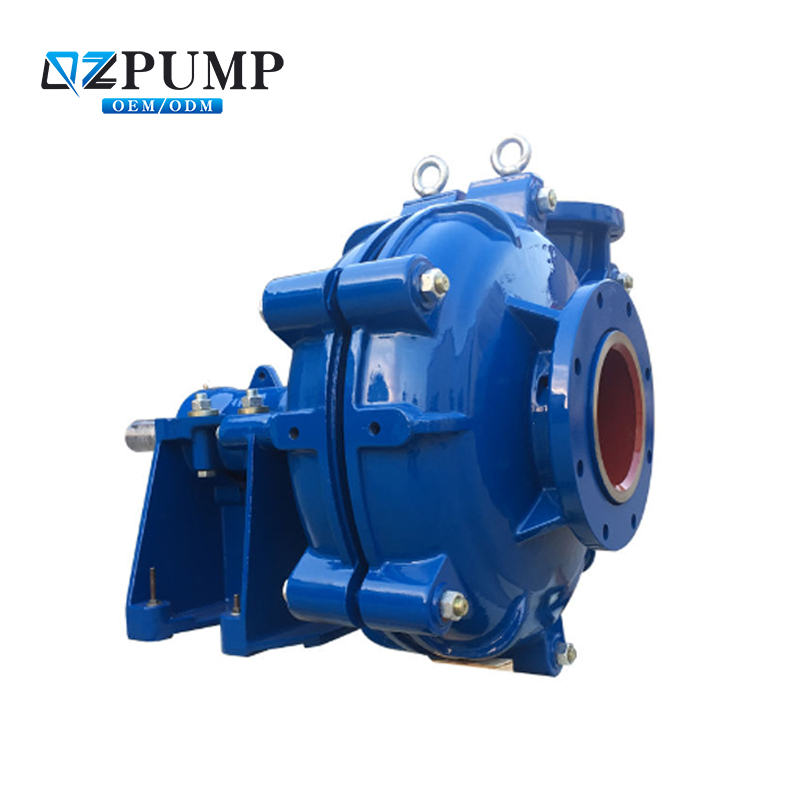

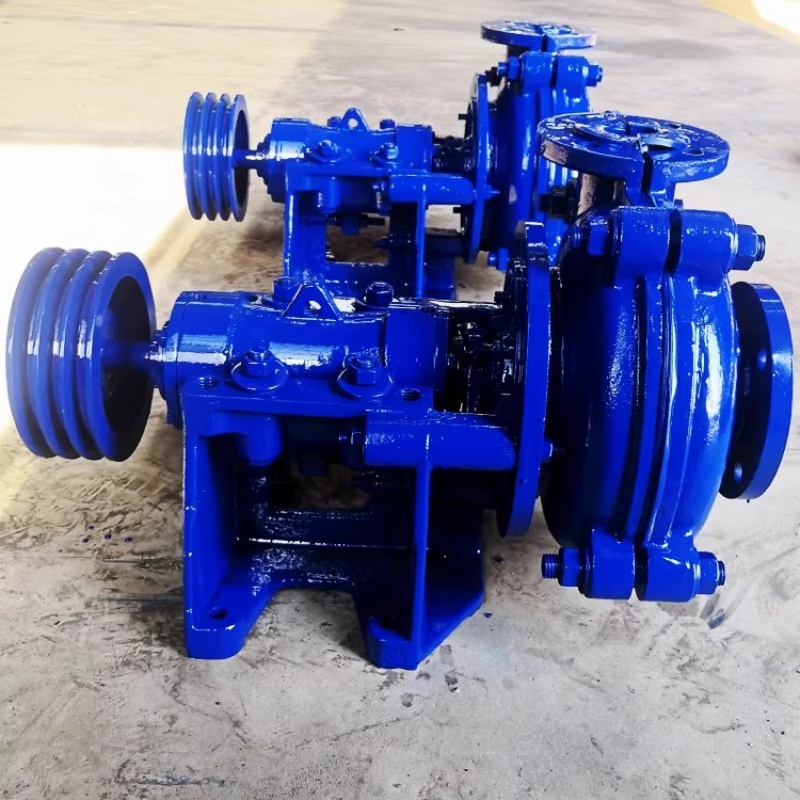

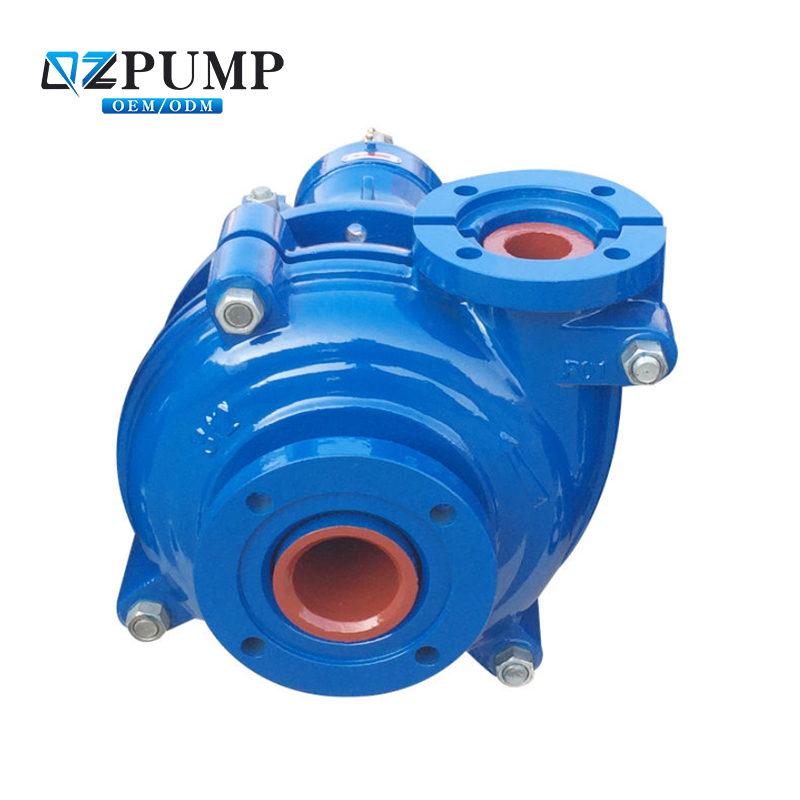

AH Type Horizontal Centrifugal Industrial Pump High-Flow Slurry with Low Pressure 2/1.5 3/2 4/3 8/6 6/4 Mud Pump for Clean Water
| application | Automotive Industry |
| pressure | Low Pressure |
| warranty | 1 year |
| place of origin | Hebei, China |
| customized support | OEM,ODM |
| power source | Electric |
| model number | AH type slurry pump |
| temperature | 5-80°c |
| Chemical Compatibility | Water |
| control method | Manual Control,Fully Automatic Control,Semi-Automatic Control |
| brand name | qizhuo |
| Flow rate | 10.8-5400m³/h |
| head | 6-68m |
| Diameter | 152-1370mm |
| speed | 200-3800r/min |
| Voltage | 220/380v |
| Cable | as customer request |
| Export type | Universal Style |
| Liquid | wastewater |
| sealing material | Stainless Steel |
| surface treatment | Spraying |
| Motor Enclosure | totally enclosed fan cooled |
▶Usage and Features:

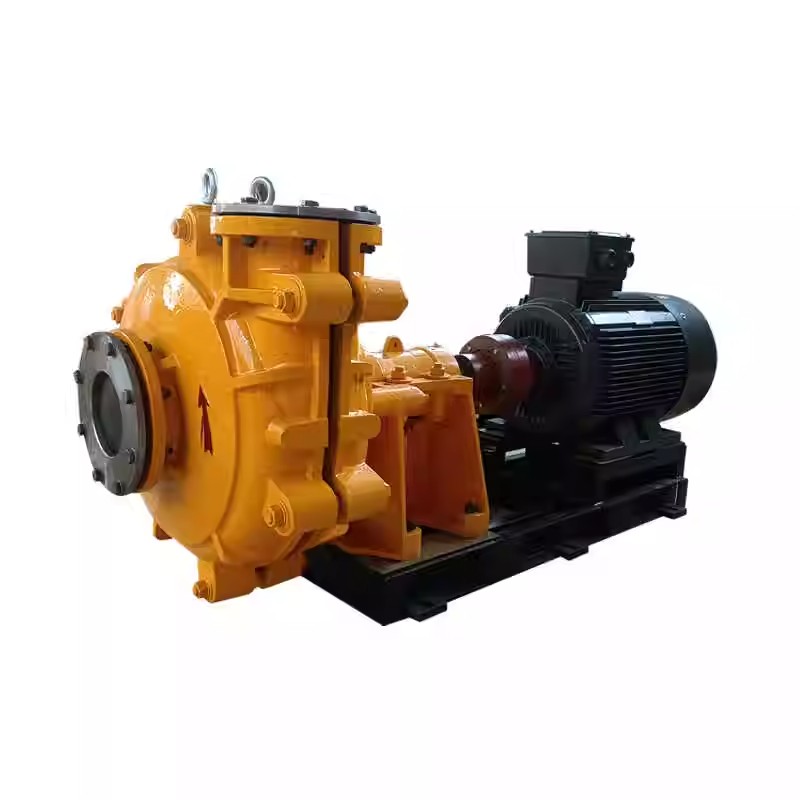

The M, AH, and HH types are cantilever and horizontal centrifugal slurry pumps, suitable for transporting highly abrasive and high-concentration slurry in industries such as metallurgy, mining, coal, power, and construction. These types of pumps can also be used in multiple stages in series.

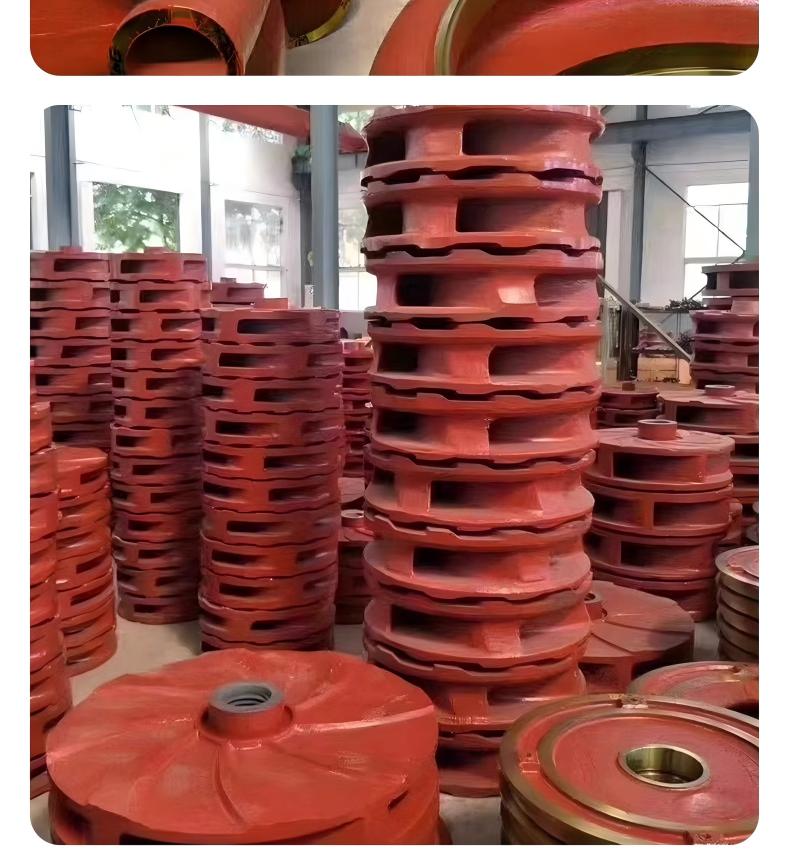

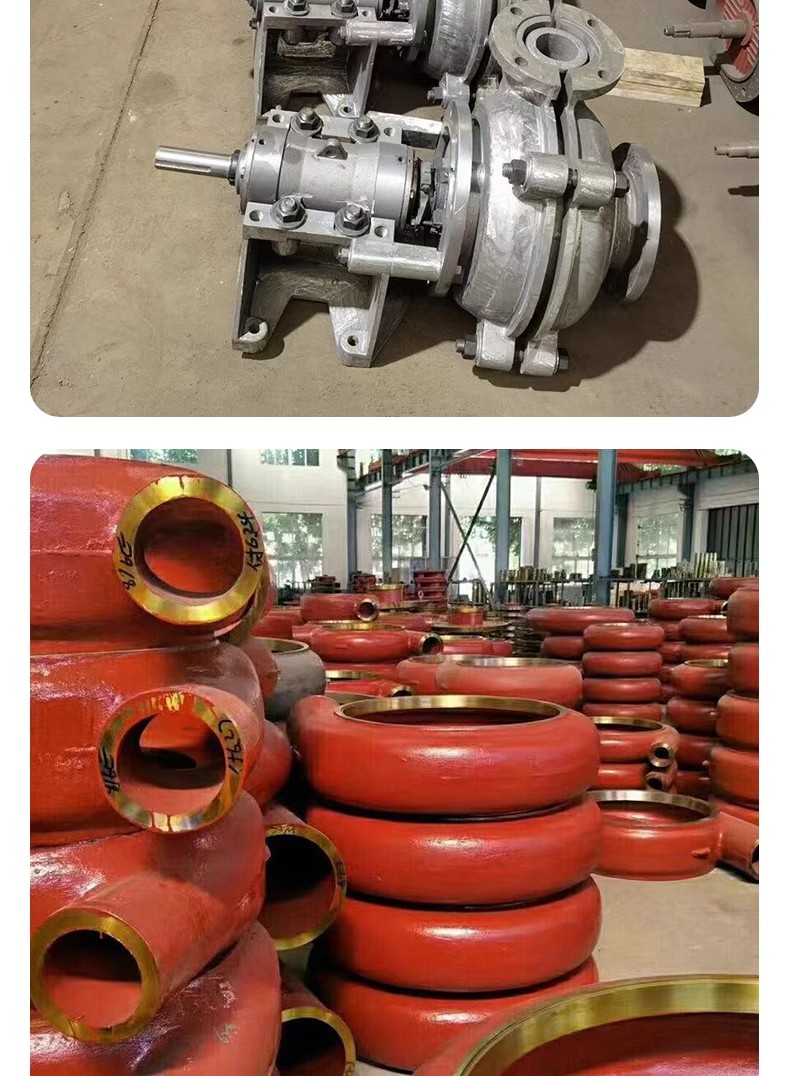

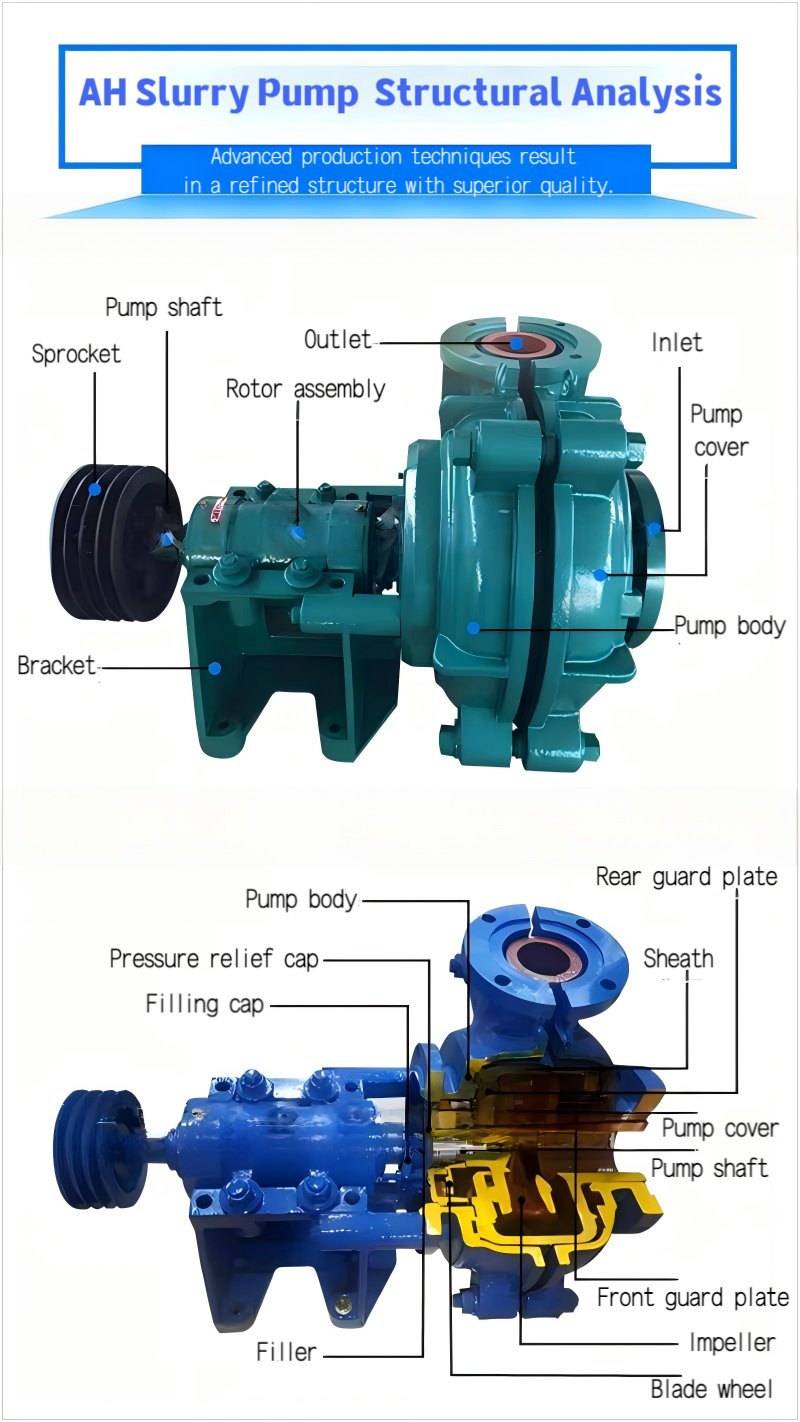

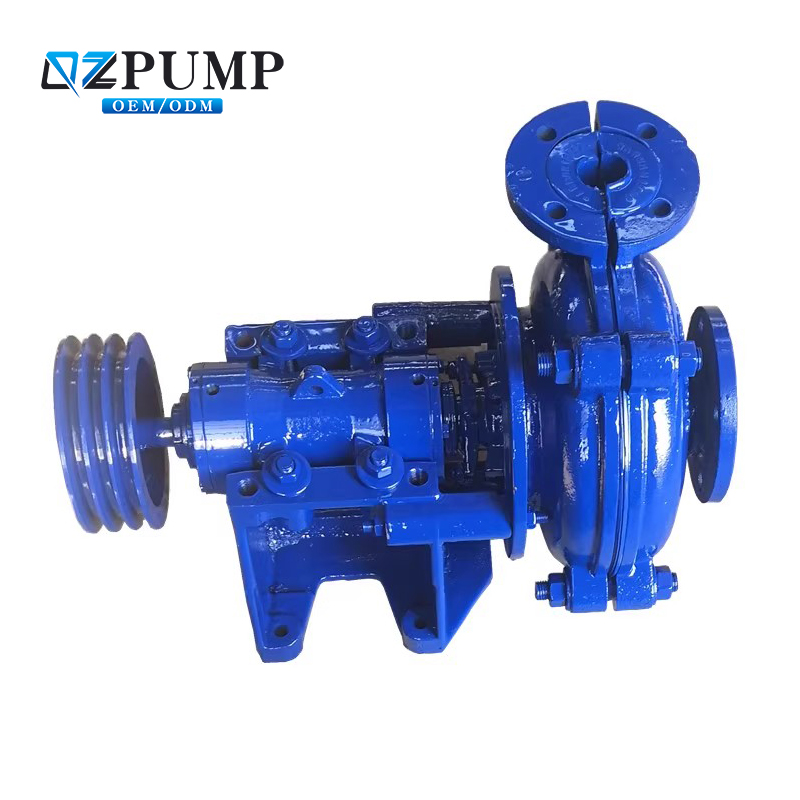

The pump body of the M and AH types has replaceable wear-resistant metal liners or rubber liners, and the impeller is made of wear-resistant metal or rubber. The pump body and impeller of the HH type are only made of wear-resistant metal.
The shaft seals of the M, AH, and HH type pumps can be either packed seals or centrifugal seals. The outlet position of the pump can be changed by 45° intervals as needed, and it can be installed and used at eight different angles by rotation.
▶Model Significance:
For example:10/8 ST-AH (or M, HH)
10 - Inlet diameter of the pump (inches)
8 - Diameter of pump discharge outlet (inches)
HH - High Head Slurry Pump
M, AH- slurry pump
ST - Introduction to Tray
▶Type Selection:
Refer to the performance curve of this pump. The selected flow range should be
M and AH type pumps
The flow range for high-concentration and highly abrasive slurry is 40 to 80%.
For medium concentration and highly abrasive slurry, the flow range is 40 to 100%.
The flow range for low concentration and highly abrasive slurry is 40 to 120%.
